Configuring Minicom on Ubuntu to connect to Cisco Router

Ok, that was a large title for this task but what the heck. What needs to be done to achieve this? We need a piece of software called minicom (this has been around for ages, google it and you will learn a lot) and follow the next steps shown below:

a) install minicom and follow the normal procedures

sudo apt-get isntall minicom

b) check your serial ports.

We need to know the serial ports on your machine, so a dmseg would do the trick. Look for ttyS and take note of the number after it, in my case I have ttyS0 ready to use.

richard@wok:~$ dmesg|grep ttyS
[ 1.430818] serial8250: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
[ 1.431528] 00:0c: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
richard@wok:~$


c) launch minicom as root

$sudo minicom

You will see a page as the one below. The first lines shows the configuration (I already modified mine, so yours must be the default ones).


c) Press control + a and Z to go to the menu. The first thing we will change is the dialing string so select the letter "O" for "command string" on the below menu.



d) The previous step should have brought you to the image below. With the arrows keys select "Modem and dialing" and press enter.

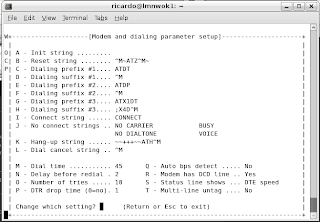

e) Now you are on the image below. Press A to set the cursor on the first line and delete everything (I use to have the following configuration ~^M~AT S7=45 S0=0 L1 V1 X4 &c1 E1 Q0^M ). One done press ESC or RETURN to go back to the menu.


f) Now back on the menu select "Serial Port Setup" with the arrow keys.


g) Using the letters configure the options:
A - For Serial Device
E - For Bps/Par/Bits

Copy the configuration below, the option "E" will bring a new menu where you select the details. The option A has to match with what you find on the dmseg step "b" of this guide.



h) Exit to the main menu and reset minicom. Restart it so the changes would take effect (maybe there is an option to make the changes live without restarting minicom but this is a small step).

After rebooting minicom with the Cisco router connected with the blue cable to your pc/laptop just turn the Cisco on and you will see the details on the screen and you are good to go. Example below:


I will add more details/tips along the way.

As always good luck!
